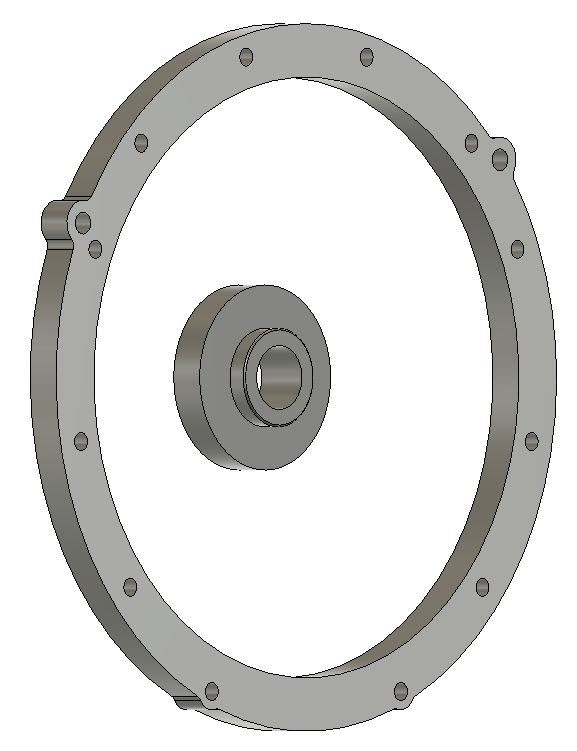

Precision STEP model of the Mercedes-Benz M120 V12 engine bellhousing mounting pattern, professionally measured using a Coordinate Measuring Machine (CMM) for dimensional accuracy, then digitized and converted into a CAD-compatible STEP file.
This digital model provides an accurate representation of the M120 engine's bellhousing interface, making it an invaluable resource for engineers, fabricators, and builders developing custom transmission adapters, bellhousings, and drivetrain components.
By utilizing CMM measurement technology rather than conventional hand measurements, the mounting pattern has been captured with a high degree of precision, providing a reliable foundation for custom drivetrain engineering and fabrication.
Custom transmission adapter plate design
Engine-to-transmission conversions
Bespoke bellhousing development
Manual transmission swaps
Sequential transmission installations
Motorsport and racing drivetrain applications
Custom engine and transmission mounting solutions
Engine: Mercedes-Benz M120 V12
Component: Bellhousing Mounting Pattern
Measurement Method: Coordinate Measuring Machine (CMM)
Model Creation: Digitized from physical measurements
File Format: STEP (.STEP/.STP)
Product Type: Digital Download
Unlike reference models created from photographs, drawings, or approximate hand measurements, this bellhousing pattern was physically measured using a CMM, allowing critical mounting locations and geometric relationships to be captured with high precision.
The resulting measurements were digitized and converted into a STEP model suitable for use in professional CAD software.
This eliminates much of the time-consuming process of manually measuring and recreating the bellhousing interface, providing an accurate starting point for custom adapter plates, transmission conversions, and other drivetrain engineering projects.
This listing is for a digital STEP model only. No physical components are included or shipped.
Although the bellhousing pattern was measured using a Coordinate Measuring Machine for improved dimensional accuracy, all critical dimensions, tolerances, and component clearances should be independently verified before manufacturing or installing custom drivetrain components.
This model represents the bellhousing mounting pattern and should not be interpreted as a complete engine or bellhousing assembly.
Mercedes-Benz and M120 are trademarks/product designations of their respective owner. This digital model is independently developed and is not affiliated with or endorsed by Mercedes-Benz.
Digital download — no physical product will be shipped.
